DESCRIPTION

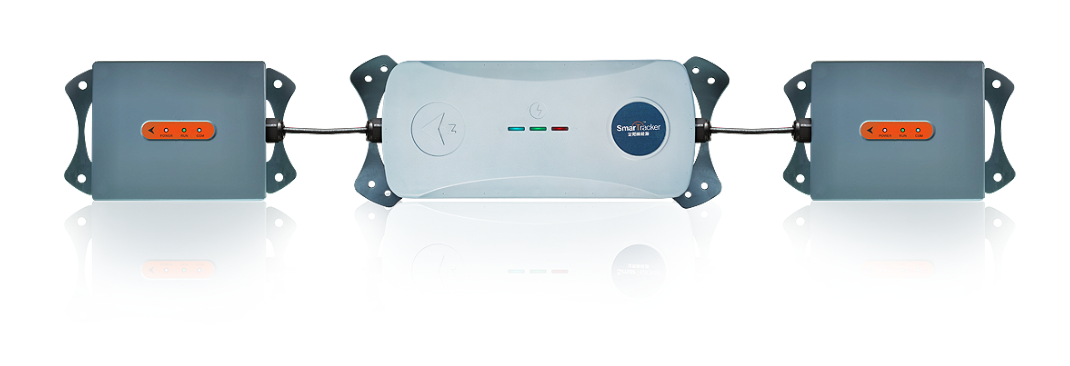

TS500 is SmarTracker developed multi-point driven tracking controller,The system includes a master box and a slave box, The master box along the motor in the middle control, two slave box on both sides to drive motor individual , and master box accept string-power 250V~1500VDC power supply, After internal conversion, output 24 VDC to the slave box, RS485 cable connection is used between the master box and the slave box to communicate, so as to achieve three synchronous drivers, three motor synchronization accuracy control at < 1 °.
TS500 is a highly intelligent tracking controller. According to the local longitude, latitude, and time, the program automatically calculates the sun's trajectory at any time and the azimuth and altitude of the location. In the automatic tracking mode, the system will automatically issue command tracking commands to control the operation of electric actuators according to the current position of the sun, so that photovoltaic modules can track the sun in real time and increase power generation.
The product has intelligent functions such as wireless one-key upgrade, wireless ad hoc network, anti-shadow tracking, wind and snow protection, over-current and over-temperature protection, and is equipped with SmarTracker NCU and SCADA to realize the system automatic working modes switch under different complex weather conditions, protecting the photovoltaic bracket in the case of strong wind, heavy rain, and heavy snow. The whole system does not require manual intervention and runs fully automatically.

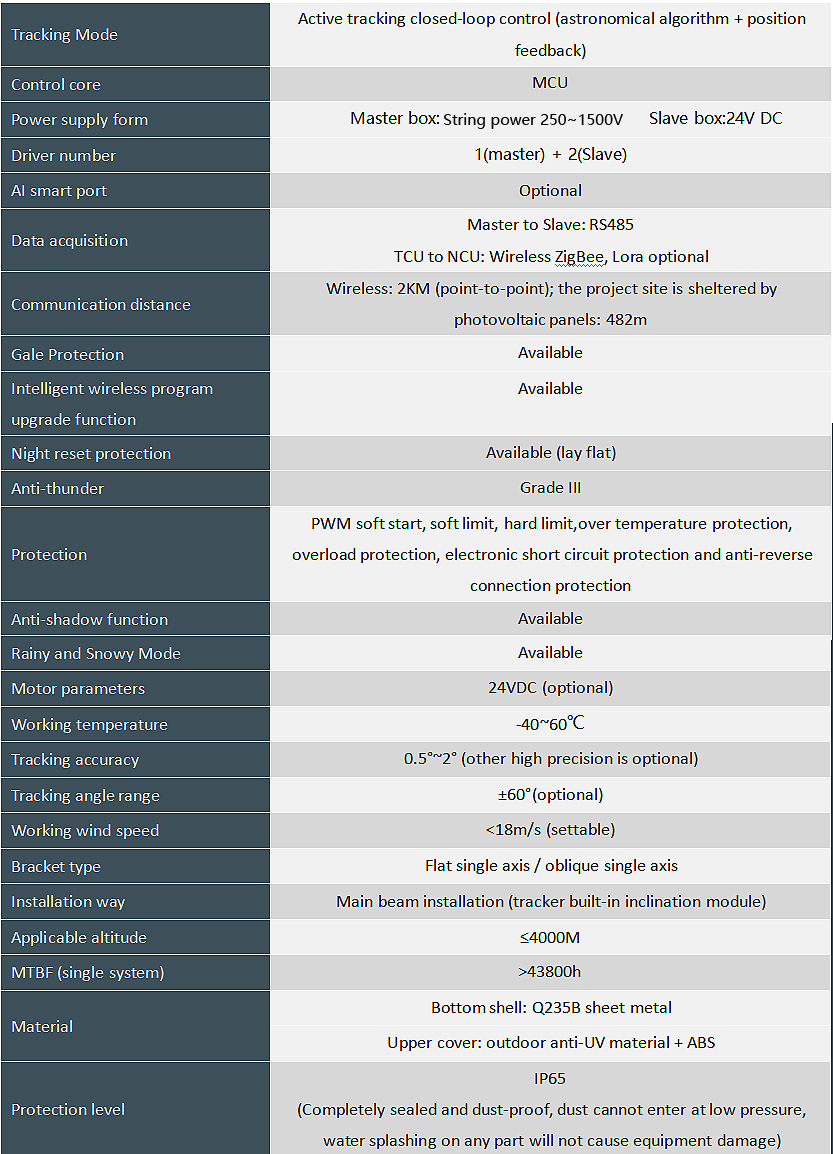

FEATURES
? Power supply:String-power 250~1500VDC;
? Built-in tilt sensor module, no need for external connection;
? Complete protection functions: angle limit protection, over temperature protection, overload protection, electronic short circuit protection and anti-reverse connection protection;
? IP65 protection;
? ZigBee&Lora two wireless modes are optional;
? The parameter settings are saved after power-off, no need to repeat settings, convenient and simple;
APPEARANCE OF FUNCTION

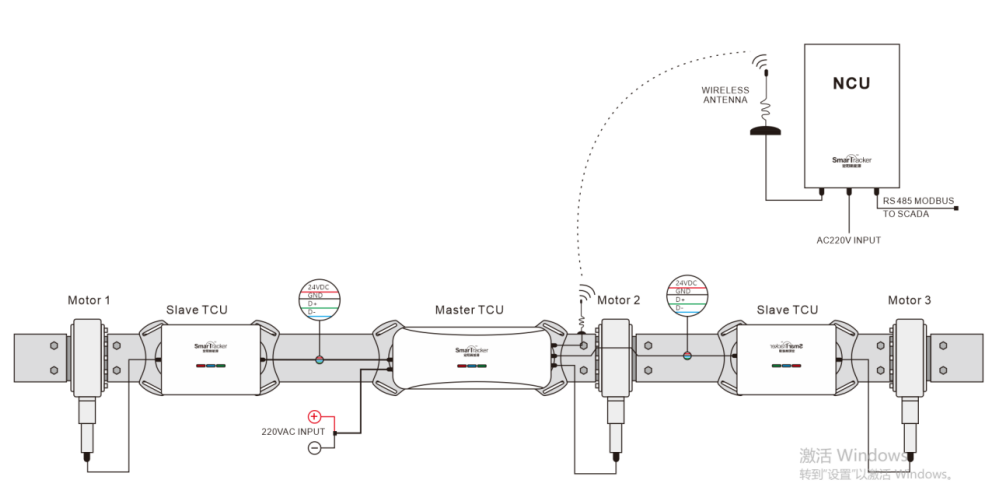

TRACKING CONTROLL SYSTEM SOLUTION DIAGRM
The flat single axis tracking bracket is a form of tracking bracket lay out from north to south and tracking from east to west. According to the astronomical algorithm, the controller (TCU) uses the motor to drive the bracket to track the sun in real time, maximizing the solar radiation on the surface of the photovoltaic module. In turn, increase power generation. The controller (Maste TCU) is powered by DC250V-750V from the string battery panel directly, and the controller converts the voltage into DC24V through the circuit to control the motor for closed-loop control of the system.
TS500-150, Driving Power150W, 3motor output, String-power 1500V supply
------------------------------------------------------------------------------------------------------
TA500-150, Driving Power150W, 3motor output, AC 90~260V supply
